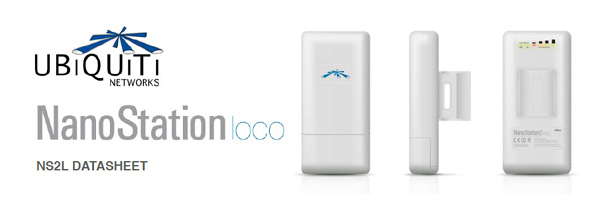

NS2L DATASHEET

SYSTEM INFORMATION
Processor Specs			Atheros MIPS 4KC, 180MHz
Memory Information			16MB SDRAM, 4MB Flash
Networking Interface			1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals			FCC Part 15.247, IC RS210, CE
RoHS Compliance			YES

RADIO OPERATING FREQUENCY 2412-2462 MHz
TX SPECIFICATIONS					RX SPECIFICATIONS
	DataRate	TX Power	Tolerance			DataRate	Sensitivity	Tolerance
802.11b	1Mbps	20 dBm	+/-1dB		802.11b	1Mbps	-95 dBm	+/-1dB
	2Mbps	20 dBm	+/-1dB			2Mbps	-94 dBm	+/-1dB
	5.5Mbps	20 dBm	+/-1dB			5.5Mbps	-93 dBm	+/-1dB
	11Mbps	20 dBm	+/-1dB			11Mbps	-90 dBm	+/-1dB

802.11g OFDM	6Mbps	20 dBm	+/-1dB		802.11g OFDM	6Mbps	-92 dBm	+/-1dB
	9Mbps	20 dBm	+/-1dB			9Mbps	-91 dBm	+/-1dB
	12Mbps	20 dBm	+/-1dB			12Mbps	-89 dBm	+/-1dB
	18Mbps	20 dBm	+/-1dB			18Mbps	-88 dBm	+/-1dB
	24Mbps	20 dBm	+/-1dB			24Mbps	-84 dBm	+/-1dB
	36Mbps	18 dBm	+/-1dB			36Mbps	-81 dBm	+/-1dB
	48Mbps	16 dBm	+/-1dB			48Mbps	-75 dBm	+/-1dB
	54Mbps	15 dBm	+/-1dB			54Mbps	-72 dBm	+/-1dB

ADJUSTABLE CHANNEL SIZE SUPPORT
5MHz			10MHZ			20MHz

RANGE PERFORMANCE
Outdoor (BaseStation Antenna Dependent):				Over 5km
ANTENNA
Gain		8dBi (2400-2500MHz)			Surival Wind		216 km /hr
Polarization		Multi-Polarized			3dB Beamwidth Elevation		60 degrees
Polarization Selection		Software Controlled			3dB Beamwidth Azimuth		60 degrees
Azimuth					Elevation

PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size			16.3 cm. length x 3.1 cm. height x 8cm. width
Weight			0.18kg
Enclosure Characteristics			Outdoor UV Stabalized Plastic
Mounting Kit			Pole Mounting Kit included
Max Power Consumption			4 Watts
Power Supply			12V, 1A (12 Watts). Supply and injector included
Power Method			Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature			-20C to +70C
Operating Humidity			5 to 95% Condensing
Shock and Vibration			ETSI300-019-1.4
SOFTWARE
